Filter MonitorING SYSTEM
Code-Compliant Booth Controls
The RTT Filter Monitoring System tracks exhaust filter condition in real time by measuring pressure differential across each filter stage — delivering objective, data-driven alerts to operators, paint line managers, and facility teams. The result: fewer unnecessary filter change-outs, consistent airflow, and no surprises on the production floor.
Available in three configurations — Standard, Plus, and Pro — the system scales from door-mounted visual indicators to a fully networked touchscreen with email and text alerts, historical data logging, and integrated inventory management. It installs on any new or existing spray booth from any manufacturer, powered by a standard 120V outlet.
Benefits
- Eliminate unnecessary filter change-outs – objective pressure data tells you exactly when filters need replacing, reducing wasted materials and labor costs
- Prevent costly booth downtime – three-stage alert thresholds (Warning, Replace, Shutdown) give operators advance notice before filter loading affects finish quality or triggers an unplanned shutdown
- Improve spray booth efficiency – maintaining optimal airflow through timely filter maintenance keeps booth performance consistent and reduces energy consumption
- Keep management informed automatically – email and text notifications (Pro) eliminate the need for manual checks, ensuring the right people are alerted the moment action is required
- Smarter purchasing and inventory control – historical pressure data and integrated inventory tracking (Pro) allow purchasing managers to forecast filter usage and maintain accurate stock levels year-round
- Supports OSHA and NFPA compliance – documented filter condition data supports regulatory recordkeeping and helps demonstrate due diligence in exhaust system maintenance
Filter Monitoring System Features
- Three-tier alert system – Warning (yellow stack light), Replace (red stack light), and Shutdown (dry contact interlock disables connected equipment) set points are user-adjustable per sensor stage
- External analog pressure transmitters – sensors mount near the filters and measure the pressure differential across each stage via 1/8″ poly tubing connected to pressure ports in the filter chamber wall
- Supports up to 12 sensors – one sensor per filter stage; a booth with 4 chambers of 3-stage filtration requires 12 sensors (Pro model)
- 7″ color touchscreen display – displays live pressure readings, set point status, and system history (Plus and Pro)
- Omron CP Series PLC – industrial-grade programmable logic controller for reliable performance (Plus and Pro)
- RGB LED stack light — provides at-a-glance visual status indication from across the facility (all models)
- Data acquisition and recording – pressure readings are stored in touchscreen memory, enabling review of filter lifespan history and scheduled maintenance planning (Pro)
- Electronic notifications via ethernet – when connected to an active internet connection, email and text alerts are sent to any contacts in the notification list (Pro)
- Integrated filter inventory management — tracks up to two part numbers per sensor stage, in-stock quantity, quantity used per change-out, and minimum stock levels (Pro)
- Front-mounted USB port – for data export to external USB memory (USB 2.0 FAT32, 8GB max)
- Side-mounted IEC power inlet and CAT6 RJ45 port – for clean, secure power and ethernet connectivity
- UL 508A-listed Type 12 NEMA enclosure – industrial-rated enclosure suitable for finishing environments
- Stand-alone, plug-and-play design – powered by 120 VAC, 50/60 Hz via included power cable; no additional infrastructure required
Options & Configurations
Model Tiers
- Standard — dual adjustable set point pressure switches, 20 feet of 1/8″ tubing and four hose barbs, door-mounted LED indicators, door-mounted 0″–2″ pressure gauge, door-mounted reset button

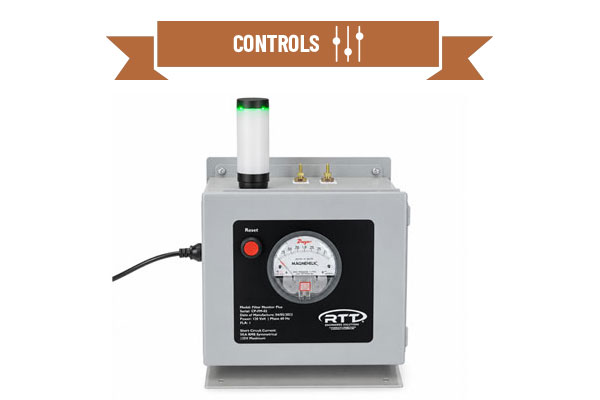

- Plus — all Standard features, plus RGB Red/Yellow/Green stack light
- Pro — all Plus features, plus 7″ color touchscreen, Omron CP Series PLC, analog pressure transmitters, email and text notifications (ethernet required), total run-time hour meters, and filter inventory management
Optional M12 Cable Assemblies
- M12 field wiring kits combine up to three sensors into a single cable for simplified, plug-and-play installation using secure threaded connectors
- Available cable lengths: 1-meter, 5-meter, and 10-meter; cables can be joined together for additional reach
- Sensors arrive pre-wired with a 1-meter pigtail
