W-Series 5200 RP Arrestors
99.93% Removal Efficiency. Built for High Production.

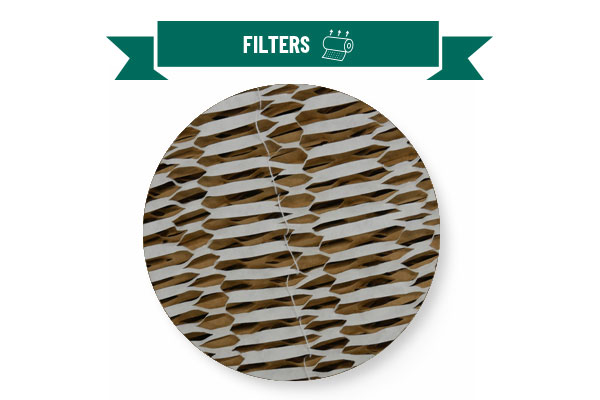

The W-Series 5200 handles both wet and tacky overspray and dry and dusty overspray efficiently – the same broad compatibility as the 5100 series, but with greater depth loading capacity for high-volume operations. The design combines RTT’s paper Paint Arrestor media with low-density polyester backing for fine-particle capture. The clean filter pressure drop of 0.05 in. wg rises to 0.15 in. wg at full load. Available in pad form (20″ × 20″ single layer, RP Part # W5200) and in roll form.
Features
- Nine-layer expanded paper construction: seven standard layers plus three high-capacity layers forming an alternating labyrinth structure
- Heavy polyester backing
- Construction designation: 9 Paper / 1 Heavy Poly
- Design combines paper Paint Arrestor media with low-density polyester backing
- Three high-capacity layers provide greater depth loading and increased paint holding capacity
- Single pad per layer (number of pads in series: 1)
- RP Part #: W5200 (single layer, 20″ × 20″ pad)
- Available in pad form (20″ × 20″) and roll form
- Initial pressure drop (clean filter): 0.05 in. wg
- Final pressure drop (loaded filter): 0.15 in. wg
- Paint holding capacity: 1,841 grams = 4.9 lb.
- Average removal efficiency: 99.93%
- Performs with wet and tacky overspray, dry overspray, and dusty overspray
- Suited for high production environments
- Tested by LMS Technologies, Inc.
Benefits
- Achieve the highest capture efficiency in the W-Series lineup – 99.93% average removal efficiency under independently tested conditions, compared to 99.83% for the 5100 and 99.81% for the 5000.
- Extend filter service intervals in high-production environments – a paint holding capacity of 4.9 lb. (vs. 3.9 lb. on the 5100 and 4.1 lb. on the 5000) reduces changeout frequency on high-volume finishing lines.
- Handle wet, tacky, dry, and dusty overspray from a single filter media – broad overspray compatibility eliminates the need to stock different filter types for different coating operations.
- Maintain consistent airflow as the filter loads – the pressure differential between clean (0.05 in. wg) and fully loaded (0.15 in. wg) keeps fan performance stable throughout the service life of the filter.
- Fit a wide range of booth configurations – available in both pad and roll form to match standard exhaust filter banks and continuous roll filter systems.
Identification
Model: W-Series 5200 High Capacity Ultra Efficiency RP Paint Arrestor
Part No.: W5200 (20” x 20”)
Pads in series: 1
Test Data
Performance testing was conducted by LMS Technologies, Inc. under the following conditions:
| Test Parameter | Value |
|---|---|
| Paint Description | High Solids Baking Enamel (S.W. #1 Permaclad 2400, red) |
| Paint Spray Method | Conventional Air Gun at 40 PSI |
| Spray Feed Rate | 143 grains/min. (135 cc./min.) |
| Air Velocity | 150 FPM |
| Initial Pressure Drop (Clean Filter) | 0.05 in. wg |
| Final Pressure Drop (Loaded Filter) | 0.15 in. wg |
| Paint Holding Capacity | 1,841 grams = 4.9 lb. |
| Average Removal Efficiency | 99.93% |
Testing conducted by LMS Technologies, Inc.
W-Series RP Paint Arrestor Comparison
All three W-Series models are available in pad and roll form, share the same 20″ × 20″ pad dimensions. Choose based on efficiency requirements, coating type, and production volume.
W-5000
High Efficiency
Removal Efficiency
99.81%
Holding Capacity
4.1 lb.
Clean / Loaded Drop
0.03 / 0.13 in. wg
Construction
6 Paper / 1 Light Poly
Lowest initial and final pressure drop in the W-Series. Best choice when fan HP is limited.
W-5100
Ultra Efficiency
Removal Efficiency
99.83%
Holding Capacity
3.9 lb.
Clean / Loaded Drop
0.03 / 0.15 in. wg
Construction
6 Paper / 1 Heavy Poly
Handles wet, dry, and dusty overspray. Broader application compatibility than 5000.
W-5200
High Capacity Ultra Efficiency
Removal Efficiency
99.93%
Holding Capacity
4.9 lb.
Clean / Loaded Drop
0.05 / 0.15 in. wg
Construction
9 Paper / 1 Heavy Poly
Highest efficiency and highest holding capacity in the W-Series. Built for high production environments.
Full Specification Comparison
| Specification | W-5000 | W-5100 | W-5200 |
|---|---|---|---|
| Identity | |||
| Series Name | High Efficiency | Ultra Efficiency | High Capacity Ultra Efficiency |
| RP Part # (20″ × 20″ pad) | W5000 | W5100 | W5200 |
| Construction | 6 Paper / 1 Light Poly | 6 Paper / 1 Heavy Poly | 9 Paper / 1 Heavy Poly |
| Backing Type | Light polyester | Heavy polyester | Heavy polyester |
| Pad Dimensions | 20″ × 20″ | 20″ × 20″ | 20″ × 20″ |
| Available Forms | Pad and roll | Pad and roll | Pad and roll |
| Performance | |||
| Avg. Removal Efficiency | 99.81% | 99.83% | 99.93% Highest |
| Paint Holding Capacity | 1,841 g (4.1 lb.) | 1,758 g (3.9 lb.) | 1,841 g (4.9 lb.) Highest |
| Initial Pressure Drop | 0.03 in. wg Lowest | 0.03 in. wg Lowest | 0.05 in. wg |
| Final Pressure Drop | 0.13 in. wg Lowest | 0.15 in. wg | 0.15 in. wg |
| Test Conditions | |||
| Test Paint | High Solids Baking Enamel — S.W. #1 Permaclad 2400 (red) · 40 PSI · 143 gr/min · 150 FPM | ||
| Testing Laboratory | LMS Technologies, Inc. | ||
Layer Construction
W-5000 — 6 Paper / 1 Poly
Paper layer 1
Paper layer 2
Paper layer 3
Paper layer 4
Paper layer 5
Paper layer 6
Light polyester backing
Expanded paper
Light polyester backing
W-5100 — 6 Paper / 1 Poly
Paper layer 1
Paper layer 2
Paper layer 3
Paper layer 4
Paper layer 5
Paper layer 6
Heavy polyester backing
Expanded paper
Heavy polyester backing
W-5200 — 9 Paper / 1 Poly
Paper layer 1
Paper layer 2
Paper layer 3
Paper layer 4
Paper layer 5
Paper layer 6
Paper layer 7
Paper layer 8
Paper layer 9
Heavy polyester backing
Expanded paper
Heavy polyester backing
Selection Guide
Choose the Right W-Series Arrestor
Choose W-5000 when…
- Coating overspray is slightly tacky or wet
- Lowest possible initial air resistance is required
- Fan HP is limited and pressure drop must be minimized
Choose W-5100 when…
- Overspray varies between wet, dry, and dusty across production runs
- A broader overspray compatibility is needed without changing filter type
- Slightly higher efficiency than the W-5000 is required
Choose W-5200 when…
- Maximum capture efficiency is required (99.93%)
- High production volume demands longer filter service intervals
- Wet, dry, or dusty overspray is present at high feed rates
All performance data sourced from LMS Technologies, Inc. test reports. Test conditions: High Solids Baking Enamel (S.W. #1 Permaclad 2400, red) · Conventional Air Gun at 40 PSI · 143 grains/min (135 cc./min.) · 150 FPM air velocity.
