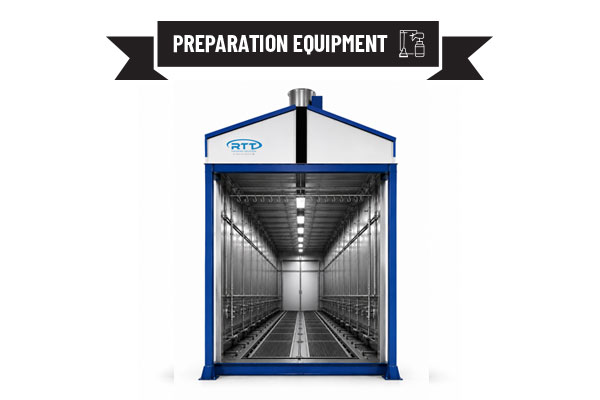

Multi-Stage Process Washer
Custom Pretreatment Washers. Engineered for the Line.
RTT Finishing Solutions’ Multi-Stage Process Washers are custom-engineered conveyor pass-through systems designed for chemical pretreatment applications ahead of painting or powder coating. Every system is developed in conjunction with chemical suppliers to meet the standards of current pretreatment technology, and each washer is sized to the customer’s specific part dimensions and cycle time requirements. A sloped roof design channels condensed water down the side walls and away from parts passing through the system.
Heating is handled by a nozzle-mix tube-firing burner that fires at high velocities through 10 stainless steel serpentine immersion tubes. Combustion gases scrub the inner tube surface to produce high heat transfer rates, achieving system efficiencies of 75% to 80%. All pump motors run on variable frequency drives to provide precise nozzle pressure control. Each stage includes water level control to maintain acceptable solution quality in recirculation, and a low water safety switch protects the burner tubing on all heated stages.
Structural integrity centers on a continuous pitched grill under the washer tank and angle stiffeners inside the tank walls, with stainless steel 2″ × 2″ × ¼″ support angles framing all tank lids and pump plates. Solution pumps are top lift-out, vertical mount units with semi-open impellers and “C” Face motors — eliminating field coupling and alignment issues and simplifying maintenance. Tank turn rating is a minimum of 3 to 1. All RTT multi-stage process washers meet and exceed applicable OSHA and NFPA regulations.
Features
- Custom-engineered conveyor pass-through configuration sized to part dimensions and cycle time requirements
- Designed in conjunction with chemical suppliers for compatibility with current pretreatment chemistry
- Sloped roof channels condensate down side walls and away from parts
- Nozzle-mix tube-firing burner: fires at high velocity through 10 stainless steel serpentine immersion tubes; system efficiency 75%–80%
- All pump motors on Variable Frequency Drives (VFD) for nozzle pressure control
- Top lift-out, vertical mount solution pumps with semi-open impellers
- “C” Face motor eliminates field coupling and alignment requirements
- Heavy cast pump frame with bearings positioned completely above the tank; bearings protected by cover plate and vapor seal
- Continuous pitched grill reinforcement under washer tank; angle stiffeners inside tank walls
- Stainless steel 2″ × 2″ × ¼″ support angles on all tank lids and pump plates
- Per-stage water level control for recirculated solution quality
- Low water safety switch on all heated stages
- Tank turn rating: 3 to 1 minimum
- Meets and exceeds all applicable OSHA and NFPA regulations
Benefits
- Get a washer sized to your exact production line – RTT engineers the conveyor pass-through system to your part dimensions and required dwell time, not a standard template.
- Reduce heating energy costs – nozzle-mix tube-firing burners with stainless steel serpentine immersion tubes deliver system efficiencies of 75% to 80%.
- Control nozzle pressure precisely across all pump stages – VFD pump motors adjust speed continuously rather than operating at fixed output.
- Protect burner components automatically – low water safety switches on all heated stages shut down the burner before tubing damage can occur.
- Simplify pump service – top lift-out, vertical mount pumps with “C” Face motors require no field coupling or alignment, reducing maintenance time and error.
- Maintain consistent solution quality throughout the run – per-stage water level controls keep recirculated solution within acceptable parameters.
- Prevent condensate from contaminating parts – the sloped roof design drains condensed water down the side walls and away from the part travel path.
Control Panels
RTT offers pre-wired motor starters, UL-listed control panels, VFD controls, and optional touchscreens to simplify operation, fan speed adjustment, and booth balancing. All panels feature a single-point connection for quick and easy installation.
UL Listed Standard
- Control Panels
Magnetic Motor Starter
- Control Panels
SmartTouch Touchscreen
- Control Panels
Variable Frequency Drive
- Control Panels
