INDUSTRIAL EXHAUST CHAMBER

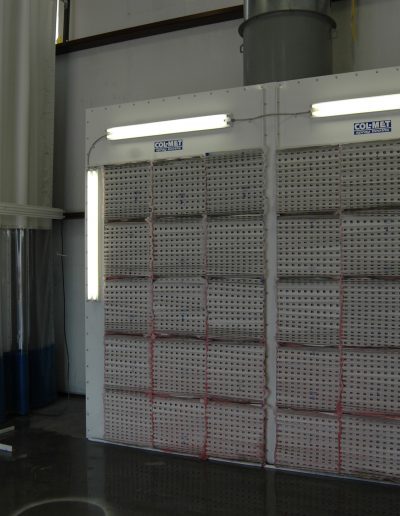

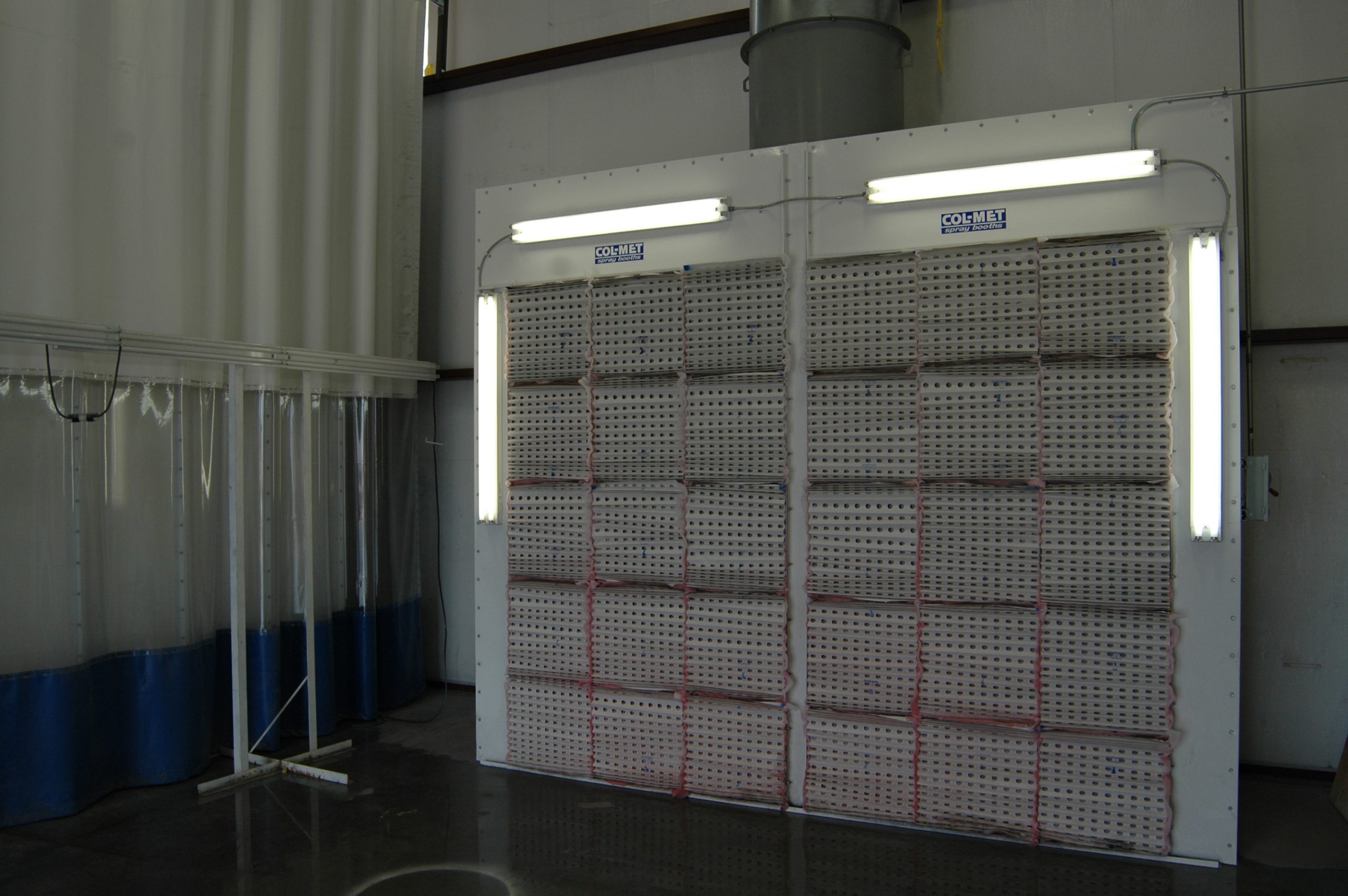

RTT’s industrial exhaust chambers are designed to efficiently remove harmful vapors and particulate. With a wide range of design configurations, our exhaust chambers can accommodate the majority of production requirements, including sanding applications. The dry arrestor filters trap the airborne overspray particles before the filtered air is discharged through the exhaust systems and into the atmosphere. Air replacement units and intake chambers can be added as well as reduced air flows for automatic spray operations.

RTT exhaust chambers are easy to install and simple to maintain. The quality and workmanship of RTT exhaust chambers allow us to offer a 5-year warranty when using high performance W-Series RP Arrestor exhaust filters manufactured by RTT.

Booth Features

  • Exhaust chambers are constructed from 18-gauge, prime quality galvanized steel. Structural steel is used to add strength and rigidity as necessary. Control panel is optional. Fire control systems are to be supplied by others.

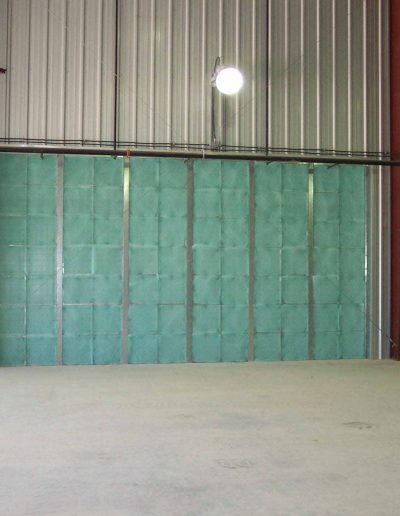

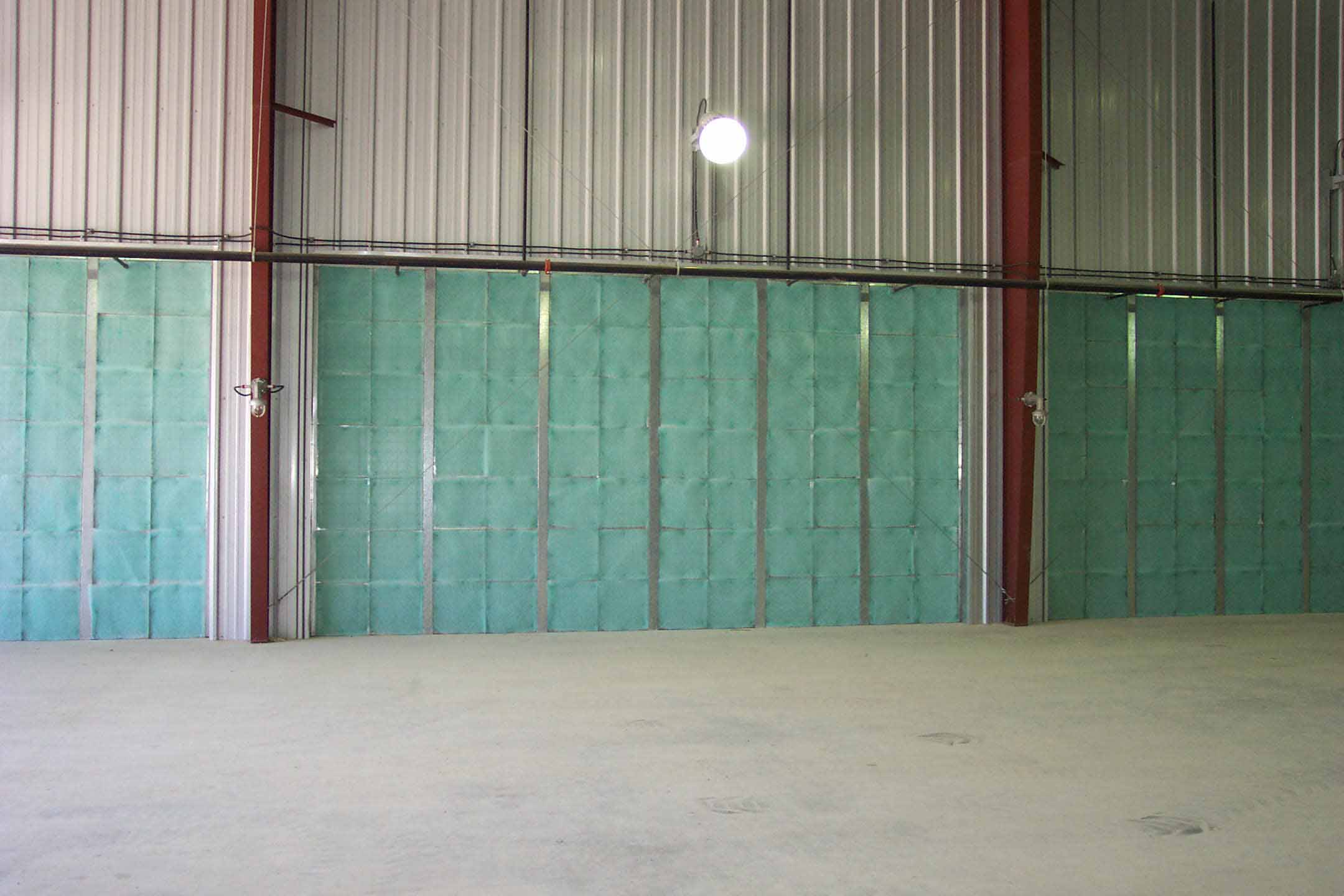

  • High efficiency W-Series RP Paint Arrestor blanket media ships with every chamber for extended life, increased depth loading and holding capacity. The blanket filters are secured in place with RTT FilterLoc technology which provides a tighter seal to the chamber eliminating overspray bypass while providing quick and easy filter change outs.

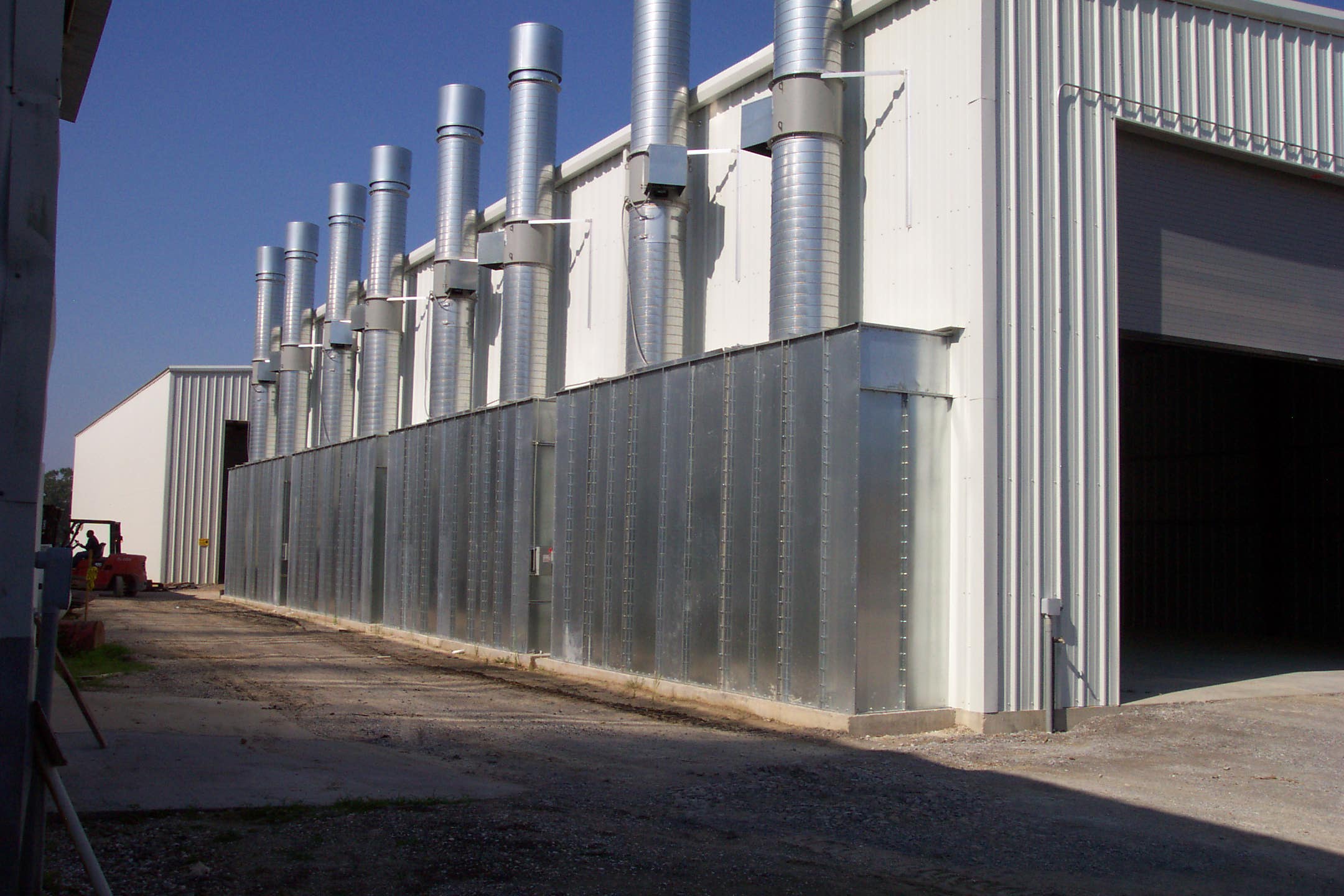

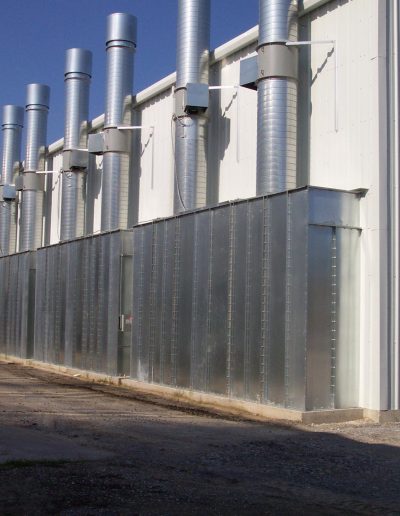

  • A tubeaxial exhaust fan, designed specifically for use in paint spray exhaust chambers, powers the airflow through the exhaust stack. All exhaust fans are of non-sparking construction.
  • Efficient motor drive and bearings are sealed from the air stream of the exhaust. Motors are provided with each unit. Optional explosion-proof motor upgrade is required for flammable painting environments.
  • Air solenoid valve interlocked to the exhaust fan and air supply for the spray application equipment is also included.
  • RTT booths meet and/or exceed quality performance standards and all applicable OSHA and NFPA regulations.

THE ONLY SPRAY BOOTH MANUFACTURER TO OFFER A 5 YEAR WARRANTY

The quality and workmanship of RTT spray booths allows us to be the only Spray Booth Manufacturer to offer a Five (5) Year Warranty* provided the customer utilizes our RTT high performance RP “W-Series” exhaust filters. These filters have been designed, tested and approved to provide superior paint particle separation while restricting the least amount of air flow in accordance with ASHRAE 52.1.

THE ONLY SPRAY BOOTH MANUFACTURER TO OFFER A 5 YEAR WARRANTY

The quality and workmanship of RTT spray booths allows us to be the only Spray Booth Manufacturer to offer a Five (5) Year Warranty* provided the customer utilizes our RTT high performance RP “W-Series” exhaust filters. These filters have been designed, tested and approved to provide superior paint particle separation while restricting the least amount of air flow in accordance with ASHRAE 52.1.

RTT can design and build spray booths in a variety of sizes and configurations. Although our team can engineer a custom booth to fit your needs, below are standard sizes that are quickly available to you.



Model Number Interior Dimensions Qty. Filters Fan Diameter Fan HP SCFM @ 1/2″ SP
Width Height Length
IBC-04-07-00-00-S 4′-4″ 7′-2″ 2′-2″ 8 18″ .75HP 3,500
IBC-06-07-00-00-S 6′-4″ 7′-2″ 2′-8″ 12 24″ 1HP 5,250
IBC-08-07-00-00-S 8′-4″ 7′-2″ 2′-8″ 16 24″ 2HP 7,000
IBC-10-07-00-00-S 10′-4″ 7′-2″ 3′-2″ 20 30″ 2HP 8,750
IBC-12-07-00-00-S 12′-4″ 7′-2″ 3′-2″ 24 30″ 3HP 10,500
IBC-14-07-00-00-S 14′-4″ 7′-2″ 3′-6″ 32 30″ 3HP 12,250
IBC-16-07-00-00-S 16′-4″ 7′-2″ 3′-6″ 36 30″ 5HP 14,000
IBC-18-07-00-00-S 18′-4″ 7′-2″ 4′-6″ 40 36″ 5HP 15,750
IBC-20-07-00-00-S 20′-4″ 7′-2″ 4′-6″ 44 36″ 5HP 17,500
IBC-04-08-00-00-S 4′-4″ 8′-2″ 2′-2″ 8 18″ 1HP 4,000
IBC-06-08-00-00-S 6′-4″ 8′-2″ 2′-8″ 12 24″ 1.5HP 6,000
IBC-08-08-00-00-S 8′-4″ 8′-2″ 2′-8″ 16 24″ 3HP 8,000
IBC-10-08-00-00-S 10′-4″ 8′-2″ 3′-2″ 20 30″ 3HP 10,000
IBC-12-08-00-00-S 12′-4″ 8′-2″ 3′-2″ 24 30″ 3HP 12,000
IBC-14-08-00-00-S 14′-4″ 8′-2″ 3′-6″ 32 30″ 5HP 14,000
IBC-16-08-00-00-S 16′-4″ 8′-2″ 4′-6″ 36 36″ 5HP 16,000
IBC-18-08-00-00-S 18′-4″ 8′-2″ 4′-6″ 40 36″ 5HP 18,000
IBC-20-08-00-00-S 20′-4″ 8′-2″ 4′-6″ 44 42″ 5HP 20,000
IBC-04-10-00-00-S 4′-4″ 10′-2″ 2′-2″ 10 18″ 1.5HP 5,000
IBC-06-10-00-00-S 6′-4″ 10′-2″ 2′-8″ 15 24″ 2HP 7,500
IBC-08-10-00-00-S 8′-4″ 10′-2″ 3′-2″ 20 30″ 3HP 10,000
IBC-10-10-00-00-S 10′-4″ 10′-2″ 3′-2″ 25 30″ 3HP 12,500
IBC-12-10-00-00-S 12′-4″ 10’2″ 3′-2″ 30 30″ 5HP 15,000
IBC-14-10-00-00-S 14′-4″ 10′-2″ 4′-6″ 40 36″ 5HP 17,500
IBC-16-10-00-00-S 16′-4″ 10′-2″ 4′-6″ 45 42″ 5HP 20,000
IBC-18-10-00-00-S 18′-4″ 10′-2″ 4′-6″ 50 42″ 5HP 22,500
IBC-20-10-00-00-S 20′-4″ 10′-2″ 4′-6″ 55 42″ 7.5HP 25,000
IBC-04-12-00-00-S 4′-4″ 12′-2″ 2′-8″ 12 24″ 1.5HP 6,000
IBC-06-12-00-00-S 6′-4″ 12′-2″ 2′-8″ 18 24″ 3HP 9,000
IBC-08-12-00-00-S 8′-4″ 12′-2″ 3′-2″ 24 30″ 3HP 12,000
IBC-10-12-00-00-S 10′-4″ 12′-2″ 3′-2″ 30 30″ 5HP 15,000
IBC-12-12-00-00-S 12′-4″ 12′-2″ 4′-2″ 36 36″ 5HP 18,000
IBC-14-12-00-00-S 14′-4″ 12′-2″ 4′-6″ 48 42″ 5HP 21,000
IBC-16-12-00-00-S 16′-4″ 12′-2″ 4′-6″ 54 42″ 7.5HP 24,000
IBC-18-12-00-00-S 18′-4″ 12′-2″ 4′-6″ 60 42″ 7.5HP 27,000
IBC-20-12-00-00-S 20′-4″ 10′-2″ 4′-6″ 66 42″ 10HP 30,000

EXHAUST CHAMBER CONTROLS



ETL-Listed With purchase of optional control panel. RTT provides a number of controls for your paint booth such as motor starters, multi-van, VFD controls and touch screen and PLC based controls. For more information on control options, please click here.

EXHAUST CHAMBER OPTIONS

  • Air replacement units and intake chambers can be added.
  • Reduced air flows for automatic spray operations.
  • Control panel and other electrical components can be purchased separately.
  • Explosion-proof motor upgrade

Code Compliance

RTT’s products meet and/or exceed all applicable OSHA and NFPA regulations.
