VHD Batch Oven

RTT designs and fabricates batch curing ovens to meet a wide range of industrial curing applications for both liquid and powder coatings. RTT ovens are designed for efficient performance utilizing high-quality Eclipse Version 2 direct fired burners. The oven is designed around an internal frame structure which supports prefabricated insulated oven panels that interlock, simplifying installation. The floor mounted pretested burner box assembly supplies heated air to distribution plenum in the ceiling of the oven permitting full overhead discharge. This downdraft design combined with dedicated combustion and exhaust blowers allow for optimal air flow within the oven, which equates to quicker ramp up times and faster batch processing.

RTT ovens are supplied with our industry leading SmartTouch Control Panel. Utilizing the touchscreen interface, the operator can intuitively scroll through the various menu features which includes batch timers, alarms, programmable recipes, maintenance schedules and diagnostics. RTT ovens are also supplied with our SmartConnect feature which is an app-based program that allows for remote monitoring of the oven parameters and can also be configured to send notifications. RTT offers as an option the SmartBatch feature which provides real time part temperature monitoring.

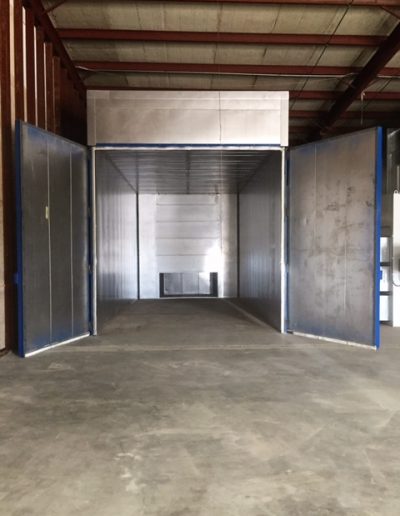

RTT’s standard batch ovens are provided with dual entry doors. Optional door configurations include bi-fold or sliding in situations where floor space is an issue. RTT also offers a premium AutoSeal metalized fabric roll-up door designed for reduced energy usage, ease of operation and operator convenience. Contact your local RTT distributor for more detailed information or custom oven designs.

Features

  • Internal angle iron frames in all models
  • 20-gauge aluminized steel with 4” insulated panels
  • Single entry and double entry designs
  • In house design and fabrication of oven panels and components
  • Slotted channel design to reduce heat transfer
  • Explosion relief doors with FM approved latches
  • Eclipse Version 2 air heat burners
  • Superior airflow design to reduce heat transfer.
  • Maximum operating temperature of 450F
  • All RTT batch ovens comply with applicable OSHA and NFPA standards
RTT Engineered Solutions VHD BATCH OVEN
RTT Engineered Solutions VHD BATCH OVEN
RTT Engineered Solutions VHD BATCH OVEN
Download Product Tech Sheet

RTT can design and build batch ovens in a variety of sizes and configurations. Although our team can engineer a custom oven to fit your needs, below are standard sizes that are quickly available to you.



Model Number Working Dimensions Single Entry Outside Chamber Double Entry Outside Chamber Recirculating Fan
Width Height Depth Width Height Depth Width Height Depth SCFM HP
BO-VHD-05-06-06-SE 5′-0″ 6′-0″ 6′-0″ 5′-8″ 7′-10″ 10′-8″ 9′-8″ 7′-10″ 6′-8″ 1,080 1HP
BO-VHD-05-06-07-SE 5′-0″ 6′-0″ 7′-0″ 5′-8″ 7′-10″ 11′-8″ 9′-8″ 7′-10″ 7′-8″ 1,260 1HP
BO-VHD-05-06-08-SE 5′-0″ 6′-0″ 8′-0″ 5′-8″ 7′-10″ 12′-8″ 9′-8″ 7′-10″ 8′-8″ 1,440 1.5HP
BO-VHD-05-06-10-SE 5′-0″ 6′-0″ 10′-0″ 5′-8″ 7′-10″ 14′-8″ 9′-8″ 7′-10″ 10′-8″ 1,800 1.5HP
BO-VHD-05-06-12-SE 5′-0″ 6′-0″ 12′-0″ 5′-8″ 7′-10″ 16′-8″ 9′-8″ 7′-10″ 12′-8″ 2,160 2HP
BO-VHD-06-06-06-SE 6′-0″ 6′-0″ 6′-0″ 6′-8″ 7′-10″ 10′-8″ 10′-8″ 7′-10″ 6′-8″ 1,296 1HP
BO-VHD-06-06-08-SE 6′-0″ 6′-0″ 8′-0″ 6′-8″ 7′-10″ 12′-8″ 10′-8″ 7′-10″ 8′-8″ 1,728 1.5HP
BO-VHD-06-06-10-SE 6′-0″ 6′-0″ 10′-0″ 6′-8″ 7′-10″ 14′-8″ 10′-8″ 7′-10″ 10′-8″ 2,160 2HP
BO-VHD-06-06-12-SE 6′-0″ 6′-0″ 12′-0″ 6′-8″ 7′-10″ 16′-8″ 10′-8″ 7′-10″ 12′-8″ 2,592 2HP
BO-VHD-06-06-14-SE 6′-0″ 6′-0″ 14′-0″ 6′-8″ 7′-10″ 18′-8″ 10′-8″ 7′-10″ 14′-8″ 3,024 3HP
BO-VHD-06-06-16-SE 6′-0″ 6′-0″ 16′-0″ 6′-8″ 7′-10″ 20′-8″ 10′-8″ 7′-10″ 16′-8″ 3,456 3HP
BO-VHD-06-07-06-SE 6′-0″ 7′-0″ 6′-0″ 6′-8″ 8′-10″ 10′-8″ 10′-8″ 8′-10″ 6′-8″ 1,512 1.5HP
BO-VHD-06-07-08-SE 6′-0″ 7′-0″ 8′-0″ 6′-8″ 8′-10″ 12′-8″ 10′-8″ 8′-10″ 8′-8″ 2,016 2HP
BO-VHD-06-07-10-SE 6′-0″ 7′-0″ 10′-0″ 6′-8″ 8′-10″ 14′-8″ 10′-8″ 8′-10″ 10′-8″ 2,520 2HP
BO-VHD-06-07-12-SE 6′-0″ 7′-0″ 12′-0″ 6′-8″ 8′-10″ 16′-8″ 10′-8″ 8′-10″ 12′-8″ 3,024 3HP
BO-VHD-06-07-14-SE 6′-0″ 7′-0″ 14′-0″ 6′-8″ 8′-10″ 18′-8″ 10′-8″ 8′-10″ 14′-8″ 3,528 3HP
BO-VHD-06-07-16-SE 6′-0″ 7′-0″ 16′-0″ 6′-8″ 8′-10″ 20′-8″ 10′-8″ 8′-10″ 16′-8″ 4,032 5HP
BO-VHD-06-08-06-SE 6′-0″ 8′-0″ 6′-0″ 6′-8″ 9′-10″ 10′-8″ 10′-8″ 9′-10″ 6′-8″ 1,728 1.5HP
BO-VHD-06-08-08-SE 6′-0″ 8′-0″ 8′-0″ 6′-8″ 9′-10″ 12′-8″ 10′-8″ 9′-10″ 8′-8″ 2,304 2HP
BO-VHD-06-08-10-SE 6′-0″ 8′-0″ 10′-0″ 6′-8″ 9′-10″ 14′-8″ 10′-8″ 9′-10″ 10′-8″ 2,880 2HP
BO-VHD-06-08-12-SE 6′-0″ 8′-0″ 12′-0″ 6′-8″ 9′-10″ 16′-8″ 10′-8″ 9′-10″ 12′-8″ 3,456 3HP
BO-VHD-06-08-14-SE 6′-0″ 8′-0″ 14′-0″ 6′-8″ 9′-10″ 18′-8″ 10′-8″ 9′-10″ 14′-8″ 4,032 5HP
BO-VHD-06-08-16-SE 6′-0″ 8′-0″ 16′-0″ 6′-8″ 9′-10″ 20′-8″ 10′-8″ 9′-10″ 16′-8″ 4,608 5HP
BO-VHD-07-07-07-SE 7′-0″ 7′-0″ 7′-0″ 7′-8″ 8′-10″ 11′-8″ 11′-8″ 8′-10″ 7′-8″ 2,058 2HP
BO-VHD-07-07-08-SE 7′-0″ 7′-0″ 8′-0″ 7′-8″ 8′-10″ 12′-8″ 11′-8″ 8′-10″ 8′-8″ 2,352 2HP
BO-VHD-07-07-10-SE 7′-0″ 7′-0″ 10′-0″ 7′-8″ 8′-10″ 14′-8″ 11′-8″ 8′-10″ 10′-8″ 2,940 3HP
BO-VHD-07-07-12-SE 7′-0″ 7′-0″ 12′-0″ 7′-8″ 8′-10″ 16′-8″ 11′-8″ 8′-10″ 12′-8″ 3,528 3HP
BO-VHD-07-07-14-SE 7′-0″ 7′-0″ 14′-0″ 7′-8″ 8′-10″ 18′-8″ 11′-8″ 8′-10″ 14′-8″ 4,116 5HP
BO-VHD-07-07-16-SE 7′-0″ 7′-0″ 16′-0″ 7′-8″ 8′-10″ 20′-8″ 11′-8″ 8′-10″ 16′-8″ 4,704 5HP
BO-VHD-08-08-08-SE 8′-0″ 8′-0″ 8′-0″ 8′-8″ 9′-10″ 12′-8″ 12′-8″ 9′-10″ 8′-8″ 3,072 3HP
BO-VHD-08-08-10-SE 8′-0″ 8′-0″ 10′-0″ 8′-8″ 9′-10″ 14′-8″ 12′-8″ 9′-10″ 10′-8″ 3,840 3HP
BO-VHD-08-08-12-SE 8′-0″ 8′-0″ 12′-0″ 8′-8″ 9′-10″ 16′-8″ 12′-8″ 9′-10″ 12′-8″ 4,608 5HP
BO-VHD-08-08-14-SE 8′-0″ 8′-0″ 14′-0″ 8′-8″ 9′-10″ 18′-8″ 12′-8″ 9′-10″ 14′-8″ 5,376 7.5HP
BO-VHD-08-08-16-SE 8′-0″ 8′-0″ 16′-0″ 8′-8″ 9′-10″ 20′-8″ 12′-8″ 9′-10″ 16′-8″ 6,144 7.5HP
BO-VHD-08-08-20-SE 8′-0″ 8′-0″ 20′-0″ 8′-8″ 9′-10″ 24′-8″ 12′-8″ 9′-10″ 20′-8″ 7,680 7.5HP
BO-VHD-08-10-08-SE 8′-0″ 10′-0″ 8′-0″ 8′-8″ 11′-10″ 12′-8″ 12′-8″ 11′-10″ 8′-8″ 3,840 3HP
BO-VHD-08-10-10-SE 8′-0″ 10′-0″ 10′-0″ 8′-8″ 11′-10″ 14′-8″ 12′-8″ 11′-10″ 10′-8″ 4,800 5HP
BO-VHD-08-10-12-SE 8′-0″ 10′-0″ 12′-0″ 8′-8″ 11′-10″ 16′-8″ 12′-8″ 11′-10″ 12′-8″ 5,760 7.5HP
BO-VHD-08-10-14-SE 8′-0″ 10′-0″ 14′-0″ 8′-8″ 11′-10″ 18′-8″ 12′-8″ 11′-10″ 14′-8″ 6,720 7.5HP
BO-VHD-08-10-16-SE 8′-0″ 10′-0″ 16′-0″ 8′-8″ 11′-10″ 20′-8″ 12′-8″ 11′-10″ 16′-8″ 7,680 7.5HP
BO-VHD-10-10-10-SE 10′-0″ 10′-0″ 10′-0″ 10′-8″ 11′-10″ 14′-8″ 14′-8″ 11′-10″ 10′-8″ 6,000 7.5HP
BO-VHD-10-10-12-SE 10′-0″ 10′-0″ 12′-0″ 10′-8″ 11′-10″ 16′-8″ 14′-8″ 11′-10″ 12′-8″ 7,200 7.5HP
BO-VHD-10-10-14-SE 10′-0″ 10′-0″ 14′-0″ 10′-8″ 11′-10″ 18′-8″ 14′-8″ 11′-10″ 14′-8″ 8,400 7.5HP
Alternative Configurationn: Double Entry (DE) Double Entry (DE)

VHD BATCH OVEN CONTROLS



Standard Control Panel Includes:



  • 3-Phase main disconnect
  • UL/cUL/ETL listed controls in a NEMA12 Enclosure
  • Motor contractors and protectors
  • Analog 1 second to 300 hour batch timer
  • Digital temperature controller and high temperature limit with rollback protection
  • FM approved gas train with high pressure, low pressure, and proof of closure safety switches. Includes ventless regulator and dual blocking valve. 2-5 psi recommended gas pressure
  • Air proving switches for all critical fans
  • Terminal strip to connect control panel to burner box
  • 230V/480V 3-phase 60Hz



Upgrade to a Smart Touch Screen control, which allow for simple and more efficient operation of your equipment.



  • 6″ Touchscreen with four batch modes and troubleshooting capabilities
  • 1 Second to 16 hour digital batch timer with countdown indication
  • Digital self-tuning temperature controller and high temperature limit with rollback protection
  • Digital password protected purge timer for safer operation
  • Available VFD control on exhaust fan for faster purge and cool-down times
  • Digital chart recorder (additional costs apply)

VHD BATCH OVEN Options

  • Exhaust stack is not included and can be purchased as an option
  • Remotely located push button HMI panel
  • Smart Touch PLC HMI Control Panel
    • 6″ Touchscreen with four batch modes and troubleshooting capabilities
    • 1 Second to 16 hour digital batch timer with countdown indication
    • Digital self-tuning temperature controller and high temperature limit with rollback protection
    • Digital password protected purge timer for safer operation
    • Available VFD control on exhaust fan for faster purge and cool-down times
    • Digital chart recorder (additional costs may apply)

Code Compliance

RTT’s products meet and/or exceed all applicable OSHA and NFPA regulations.
