CARTRIDGE BATCH POWDER COATING BOOTH
Our Cartridge Batch Powder Booths feature an open front (also know as open face) design and are ideal for small to mid-size powder applications. To ensure cartridge filters remain clean, this booth is built with a purge control feature, which assures the safe operation of the coatings enclosure by maintaining the airflow at design levels. During operation, powder accumulates on the cartridge filters, and as the cartridge filters load, airflow decreases and negative pressure rises within the air handler. A timer activates a system of air purging valves that clear the cartridge filters of accumulated powder to ensure maximum filter life.
Booth Features
- RTT booths are constructed from heavy duty 18-gauge, prime quality galvanized steel and engineered with corresponding support structure.
- All panels and support members are laser cut and precision formed for consistent fit allowing for easy nut and bolt assembly.
- Collector Module recirculates clean, filtered air into the booth and includes high quality primary filter and final filter modules. Factory-assembled, powder coated white mild steel construction with removable powder drawer.
- LED lighting is constructed of 22-gauge steel which is powder coated white, and available in 4000 and 8000 lumen models. E-Lights are ETL listed for US and Canada with Class 1 Division 2, Group A, B, C, D and Class 2 division 2, Group F and G ratings.

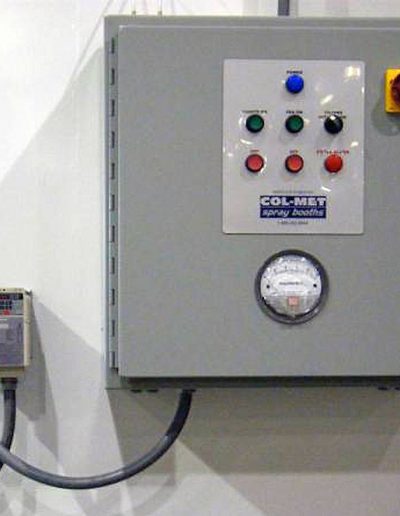

- Control Equipment Includes NEMA 12 UL and ETL listed control panel mounted to the side of the collector module, factory wired and tested. Automatic or manual cartridge filter pulse down mode; Door mounted magnehelic gauge for cartridge filter monitoring; VFD to control fan speed; Pressure switches to monitor final filter pressure and warn/ shutdown if pressure exceeds set point.
- Air solenoid valve interlocked to the exhaust fan and air supply for the spray application equipment.
- RTT booths meet and/or exceed quality performance standards and all applicable OSHA and NFPA regulations.
| Cartridge Collectors | |||||||||||||
| Interior Dimensions | Exterior Dimensions | Total CFM | Modules | Cartridge Filters |
Final Filters |
Fan Spec | |||||||
| Model Number | Width | Height | Length | Width | Height | Length | Qty | HP | Lights S&G | ||||
RPC-4000-S |
N/A | N/A | N/A | 4′-8″ (w/CP 5′-10″) | 8′-8″ (w/MFD 9′-4″) | 4′-4″ (w/Motor 6′-1″) | 4000 @3″ SP | 1 | 5 | 4 | 1 | 5HP | N/A |
RPC-5000-S |
N/A | N/A | N/A | 4′-8″ (w/CP 5′-10″) | 8′-8″ (w/MFD 9′-4″) | 4′-4″ (w/Motor 6′-1″) | 5000 @3″ SP | 1 | 5 | 4 | 1 | 7.5HP | N/A |
RPC-6000-S |
N/A | N/A | N/A | 6′-0″ (w/CP 7′-2″) | 8′-8″ (w/MFD 9′-4″) | 5′-3″ (w/Motor 6′-2″) | 6000 @3″ SP | 1 | 7 | 6 | 1 | 7.5HP | N/A |
RPC-7000-S |
N/A | N/A | N/A | 6′-0″ (w/CP 7′-2″) | 8′-8″ (w/MFD 9′-4″) | 5′-3″ (w/Motor 6′-2″) | 7000 @3″ SP | 1 | 7 | 6 | 1 | 10HP | N/A |
RPC-8000-S |
N/A | N/A | N/A | 6′-0″ (w/CP 7′-2″) | 8′-8″ (w/MFD 9′-4″) | 5′-3″ (w/Motor 6′-2″) | 8000 @3″ SP | 1 | 7 | 6 | 1 | 10HP | N/A |
| Powder Booths | |||||||||||||
| Interior Dimensions | Exterior Dimensions | Total CFM | Modules | Cartridge Filters |
Final Filters |
Fan Spec | |||||||
| Model Number | Width | Height | Length | Width | Height | Length | QTY | HP | Lights S&G | ||||
RPB-08-07-7.5-00-S |
8′-0″ | 7′-0″ | 7′-6″ | 8′-4″ | 9′-4″ | 13′-8″ | 5000 @3″ SP | 1 | 5 | 4 | 1 | 7.5HP | 1 |
RPB-08-08-7.5-00-S |
8′-0″ | 8′-0″ | 7′-6″ | 8′-4″ | 9′-4″ | 13′-8″ | 6000 @3″ SP | 1 | 7 | 6 | 1 | 7.5HP | 1 |
RPB-08-10-7.5-00-S |
8′-0″ | 10′-0″ | 7′-6″ | 8′-4″ | 10′-2″ | 13′-8″ | 7000 @3″ SP | 1 | 7 | 6 | 1 | 10HP | 1 |
RPB-10-07-7.5-00-S |
10′-0″ | 7′-0″ | 7′-6″ | 10′-4″ | 9′-4″ | 13′-8″ | 6000 @3″ SP | 1 | 7 | 6 | 1 | 7.5HP | 1 |
RPB-10-08-7.5-00-S |
10′-0″ | 8′-0″ | 7′-6″ | 10′-4″ | 9′-4″ | 13′-8″ | 7000 @3″ SP | 1 | 7 | 6 | 1 | 10HP | 1 |
RPB-10-10-7.5-00-S |
10′-0″ | 10′-0″ | 7′-6″ | 10′-4″ | 10′-2″ | 13′-10″ | 9000 @3″ SP | 1 | 9 | 9 | 1 | 10HP | 2 |
RPB-12-07-7.5-00-S |
12′-0″ | 7′-0″ | 7′-6″ | 12′-4″ | 9′-4″ | 13′-8″ | 8000 @3″ SP | 1 | 7 | 6 | 1 | 10HP | 2 |
RPB-12-08-7.5-00-S |
12′-0″ | 8′-0″ | 7′-6″ | 12′-4″ | 9′-10″ | 13′-10″ | 9000 @3″ SP | 1 | 9 | 9 | 1 | 10HP | 2 |
RPB-12-10-7.5-00-S |
12′-0″ | 10′-0″ | 7′-6″ | 12′-4″ | 10′-2″ | 13′-10″ | 11000 @3″ SP | 1 | 9 | 9 | 1 | 1.5HP | 2 |
CARTRIDGE BATCH POWDER BOOTH LIGHTING
To ensure cartridge filers remain clean, this booth is built with a purge control feature, which assures the safe operation of the coatings enclosure by maintaining the airflow at design levels. During operation, powder accumulates on the cartridge filters, and as the cartridge filters load, airflow decreases and negative pressure rises within the air handler.
BATCH POWDER BOOTH LIGHTING
RTT lighting is calculated and engineered using photometric software. Standard and custom lighting levels are easily accomplished with our E-light technology of LED fixtures.
E-Light fixtures are ETL listed and designed for proper use in spray booths. Because of this, our E-Light does not require a safety interlock saving on installation cost and additional maintenance. click here for more on RTT’s E-Light technology.
CARTRIDGE BATCH POWDER BOOTH CONTROLS
ETL-Listed With purchase of optional control panel. RTT provides a number of controls for your paint booth such as motor starters, multi-van, VFD controls and touch screen and PLC based controls. For more information on control options, please click here.
CARTRIDGE BATCH POWDER BOOTH OPTIONS
- Durable powder coated white option available
- Optional fluidized bed for powder reclamation
- Conveyor and crane slots/openings available
Code Compliance
RTT’s products meet and/or exceed all applicable OSHA and NFPA regulations.
